Commercial TURNEX200

TURNEX200

Turnex200 Commercial

Description

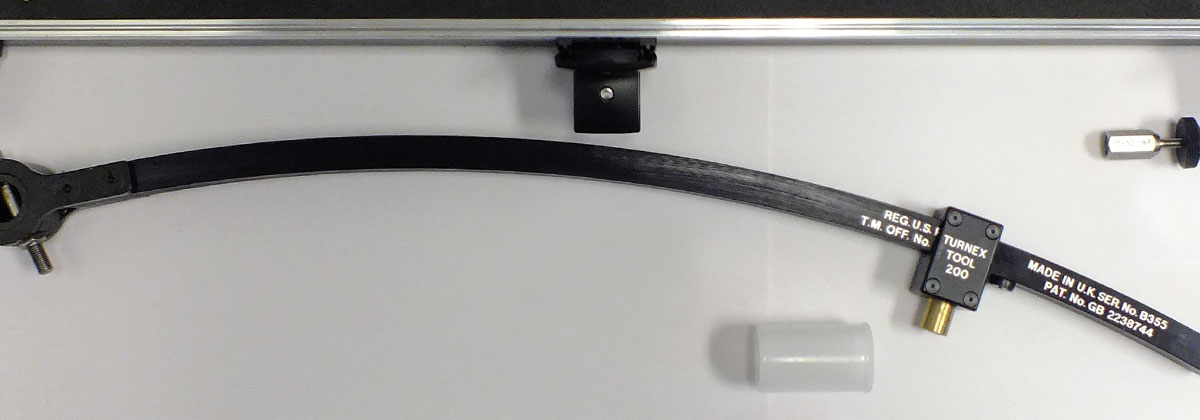

The TURNEX200 kit has a curved lever bar with a trunnion at the forward end. By rotating the trunnion and slide block 180 degrees, the Turnex200 can be quickly converted from concave to convex surfaces and vice versa.

Application

The TURNEX200 is unique in that it can be used very effectively on either concave or convex surfaces e.g. engine panels, body fairings, flying surfaces and landing lamp covers.

Threaded anchor adaptor sizes
10-32, ¼ and ⁵⁄16 UNF
Component materials
Aluminium Alloy and Steel
Measurements
Length 63cms, Width 2cms, Depth 1.5cms
Operating weight
904 grammes

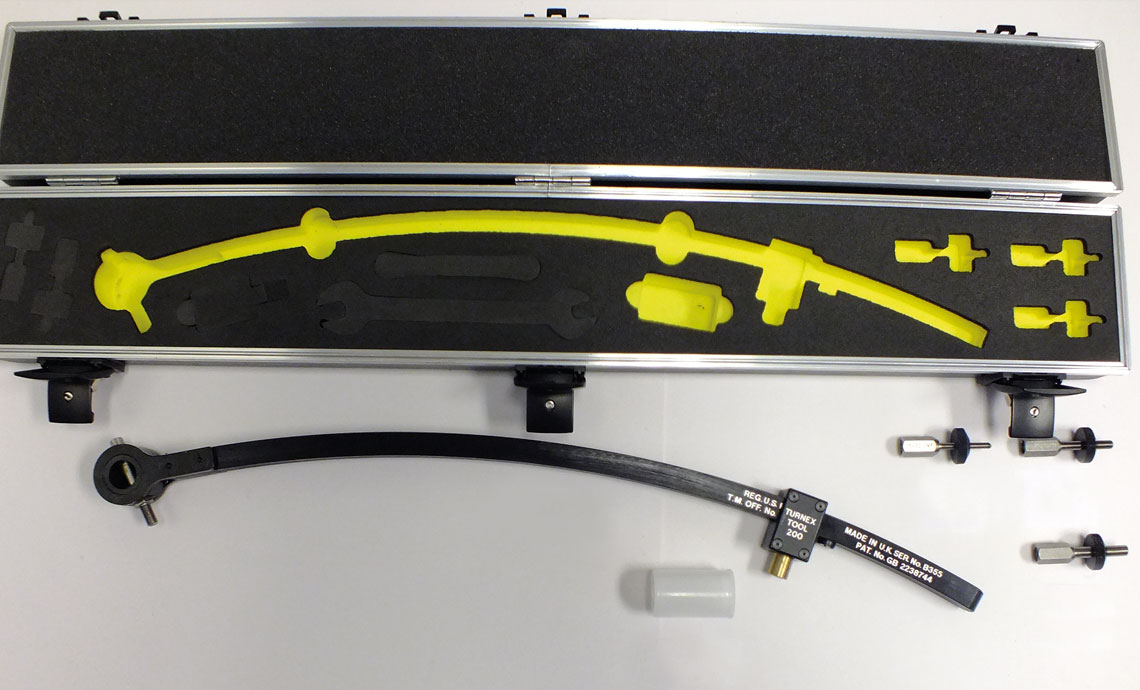

Contents
TURNEX200 Tool P/N Turnex200
3 Adaptors

  • 10-32 UNF P/N AO/1010/10
  • 1/4 UNF P/N AO/1010/11
  • 5/16 UNF P/N AO/1010/12
3 Bits to suit aircraft type
Portable Tool Case
