TURNEX50

TURNEX50

Description

The TURNEX50 is extremely lightweight and the smallest of the range of turnex tool kits.

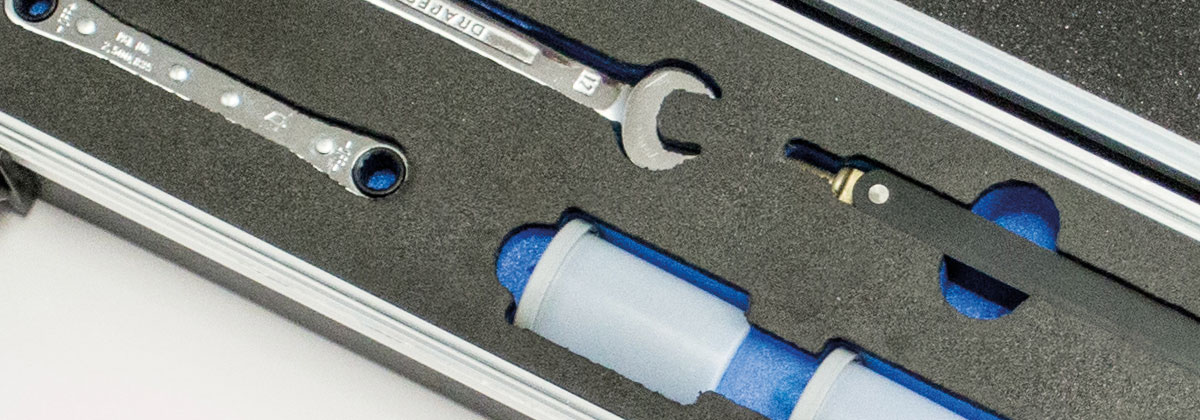

The kit consists of a pressure lever bar, a slide block bit assembly and a threaded anchor adaptor.

Application

The TURNEX50 is ideal for use on fuselage and fairing panels and in cabin locations on small or medium sized aircraft and helicopters. Its small size and weight is an asset in cabin locations and confined spaces.

Effective up to a 3” screw pitch.

Component materials
Aluminium Alloy and Steel
Measurements
Length 60cms, Width 2cms, Depth 1.2cms
Operating weight
450 grammes

TURNEX50 Imperial Tool Kit
Part No. TURNEX50 IMP
KIT NSN 5180-99-7888498

Contents – ImperialPart No.
TURNEX50 Fastener Extraction ToolTURNEX50
8/32 UNC AdaptorA0/1200/11
10/32 UNF AdaptorA0/1200/12
1/4 UNF AdaptorA0/1200/13
8/32 UNC Adjustable AdaptorA0/1200/11D
10/32 UNF Adjustable AdaptorA0/1200/12D
1/4 UNF Adjustable AdaptorA0/1200/13D
1/4 x 5/16 AF Ratchet Ring Spanner5120-01-0480170
7/16 AF Open Ended Spanner5120-99-9106001

TURNEX50 Metric Tool Kit
Part No. TURNEX50 MET
KIT NSN 5180-99-5626176

Contents – MetricPart No.
TURNEX50 Fastener Extraction ToolTURNEX50
4mm AdaptorA0/1200/M4
5mm AdaptorA0/1200/M5
6mm AdaptorA0/1200/M6
4mm Adjustable AdaptorA0/1200/M4D
5mm Adjustable AdaptorA0/1200/M5D
6mm Adjustable AdaptorA0/1200/M6D
1/4 x 5/16 AF Ratchet Ring Spanner5120-01-0480170
12mm Open Ended Spanner5120-99-9106290
