Description

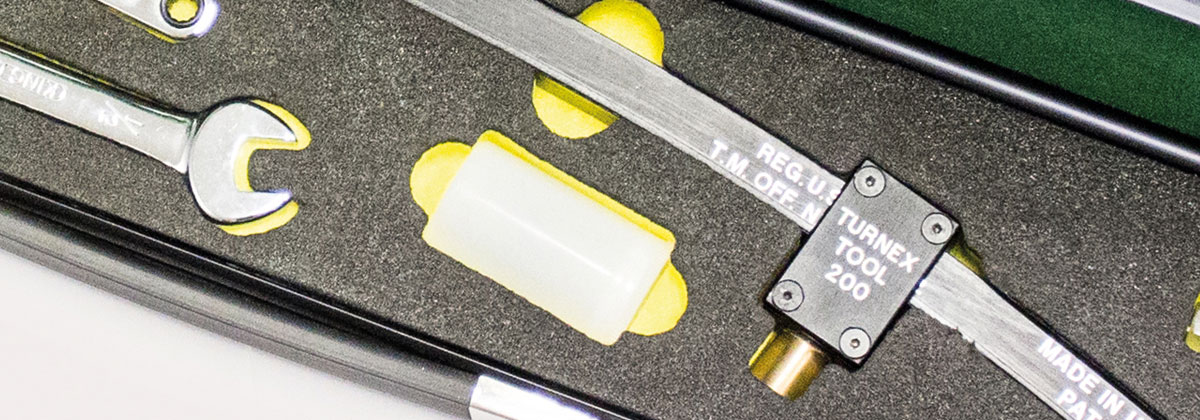

The TURNEX200 kit has a curved lever bar with a trunnion at the forward end. By rotating the trunnion and slide block 180 degrees, the Turnex200 can be quickly converted from concave to convex surfaces and vice versa.
Application
The TURNEX200 is unique in that it can be used very effectively on either concave or convex surfaces e.g. engine panels, body fairings, flying surfaces and landing lamp covers.
| Component materials |
| Aluminium Alloy and Steel |
| Measurements |
| Length 63cms, Width 2cms, Depth 1.5cms |
| Operating weight |
| 904 grammes |

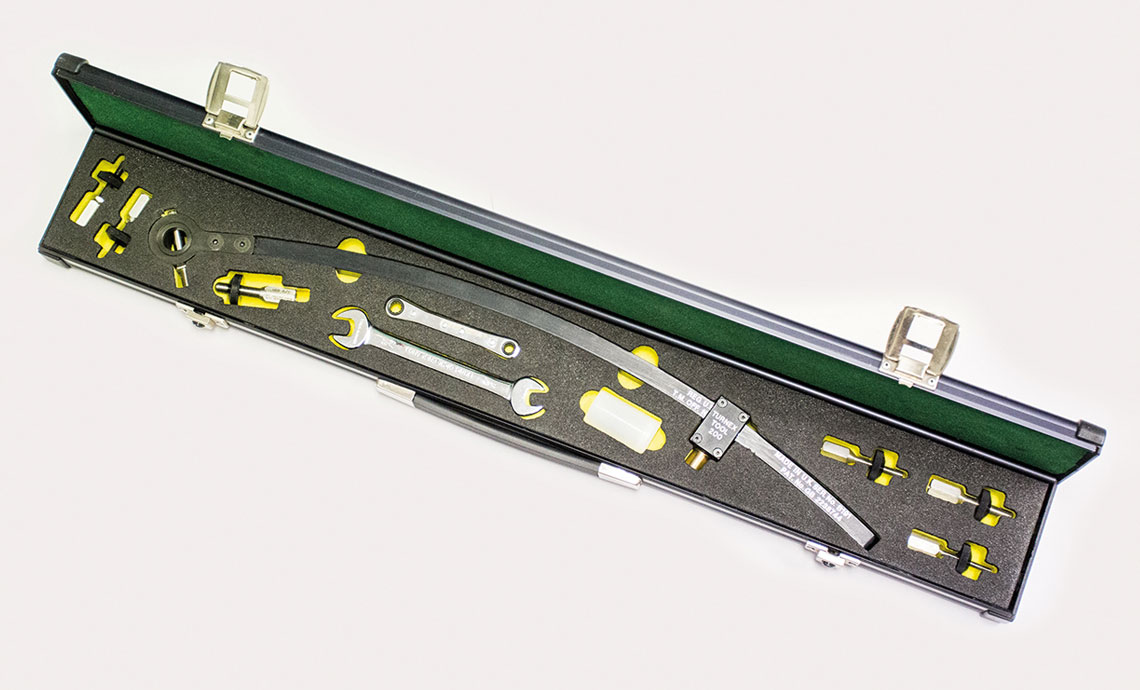

TURNEX200 Imperial Tool Kit
Part No. TURNEX200 IMP
KIT NSN 5180-99-8833316
| Contents – Imperial | Part No. |
| TURNEX200 Fastener Extraction Tool | TURNEX200 |
| 10/32 UNF Adaptor | A0/1010/10 |
| 1/4 UNF Adaptor | A0/1010/11 |
| 5/16 UNF Adaptor | A0/1010/12 |
| 3/8 UNF Adaptor | A0/1010/13 |
| 10/32 UNF Adjustable Adaptor | A0/1010/10D |
| 1/4 UNF Adjustable Adaptor | A0/1010/11D |
| 1/4 x 5/16 AF Ratchet Ring Spanner | 5120-01-0480170 |
| 1/2 x 9/16 AF Open Ended Spanner | 5120-99-1300070 |
TURNEX200 Metric Tool Kit
Part No. TURNEX200 MET
KIT NSN 5180-99-8721954
| Contents – Metric | Part No. |
| TURNEX200 Fastener Extraction Tool | TURNEX200 |
| 4mm Adaptor | A0/1010/M4 |
| 5mm Adaptor | A0/1010/M5 |
| 6mm Adaptor | A0/1010/M6 |
| 8mm Adaptor | A0/1010/M8 |
| 5mm Adjustable Adaptor | A0/1010/M5D |
| 6mm Adjustable Adaptor | A0/1010/M6D |
| 8mm Adjustable Adaptor | A0/1010/M8D |
| 1/4 x 5/16 AF Ratchet Ring Spanner | 5120-01-0480170 |
| 14 mm x15mm Open Ended Spanner |
