TURNEX100

TURNEX100

Description

The TURNEX100L is a larger version of the TURNEX50.  The general workhorse of the TURNEX range, it is an essential tool kit in the maintenance tool cabinet.

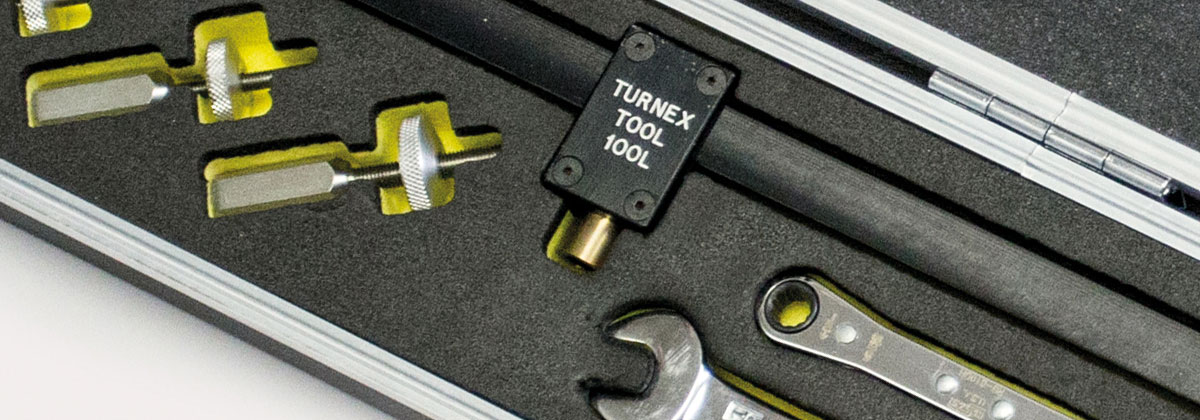

The kit consists of a pressure lever bar, a slide block bit assembly and a threaded anchor adaptor.

Application

Designed for use on large or heavy aircraft ie Boeing 777 and Airbus A330. Extremely user-friendly when working underneath the wing for removal of access panels.

Effective up to a 3” screw pitch.

Component materials
Aluminium Alloy and Steel
Measurements
Length 63cms, Width 2cms, Depth 1.5cms
Operating weight
665 grammes

TURNEX100L Imperial Tool Kit
Part No. TURNEX100L IMP
KIT NSN 5180-99-7461120

Contents – ImperialPart No.
TURNEX100L Fastener Extraction ToolTURNEX100L
8/32 UNC AdaptorA0/1000/20
10/32 UNF AdaptorA0/1000/21
1/4 UNF AdaptorA0/1000/22
5/16 UNF AdaptorA0/1000/23
10/32 UNF Adjustable AdaptorA0/1000/21D
1/4 UNF Adjustable AdaptorA0/1000/22D
1/4 x 5/16 AF Ratchet Ring Spanner5120-01-0480170
1/2 x 9/16 AF Open Ended Spanner5120-99-1300070

TURNEX100L Metric Tool Kit
Part No. TURNEX100L MET
KIT NSN 5180-99-2911348

Contents – MetricPart No.
TURNEX100L Fastener Extraction ToolTURNEX100L
4mm AdaptorA0/1000/M4
5mm AdaptorA0/1000/M5
6mm AdaptorA0/1000/M6
8mm AdaptorA0/1000/M8
5mm Adjustable AdaptorA0/1000/M5D
6mm Adjustable AdaptorA0/1000/M6D
8mm Adjustable AdaptorA0/1000/M8D
1/4 x 5/16 AF Ratchet Ring Spanner5120-01-0480170
14mm x 15mm Open Ended Spanner
